Here Autonumen.com let you know how to install KTAG Ksuite 2.23 software for KTAG Firmware 7.020 on Windows XP and KTAG token reset Q&A.
You have two choices to get KTAG FW 7.020:

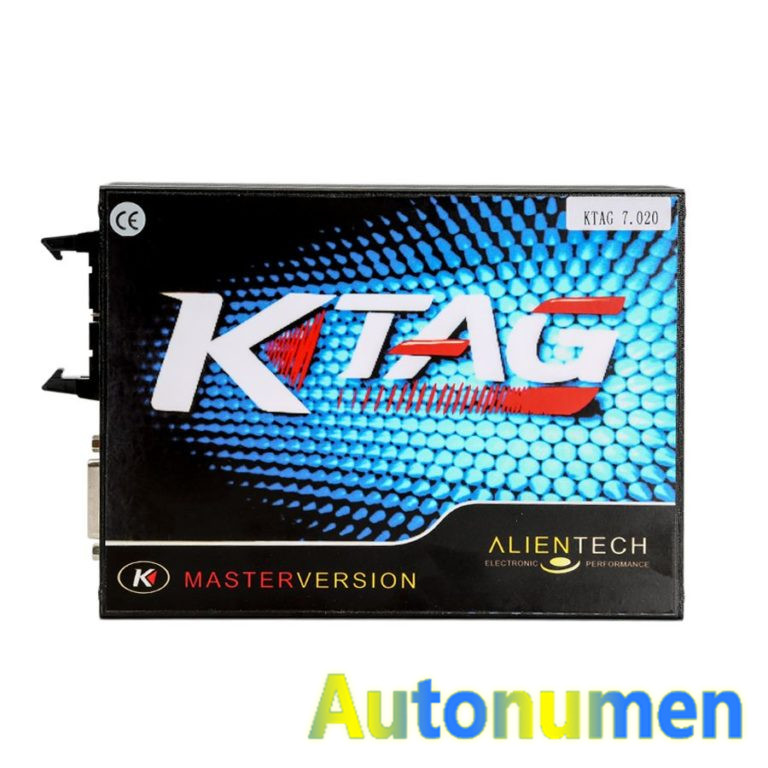

1.KTAG FW 7.020 Masterwith token renew button

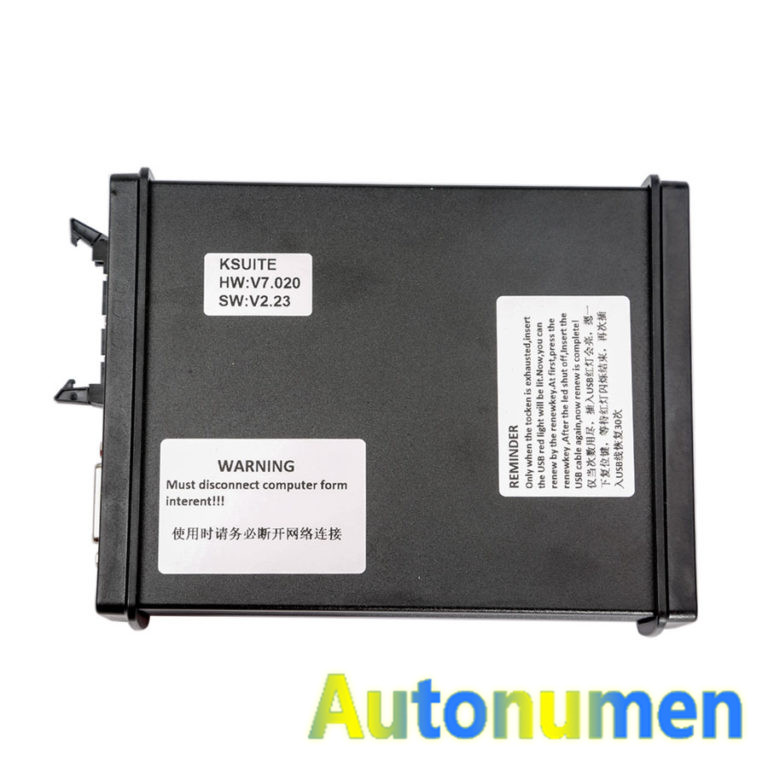

2.KTAG FW 7.020ksuite V2.23 with token renew button
Any difference? Same function?
Yes, these two kinds of KTAG FW 7.020 has SAME function and SAME unlimited tokens.
The ONLY Difference is the appearance.

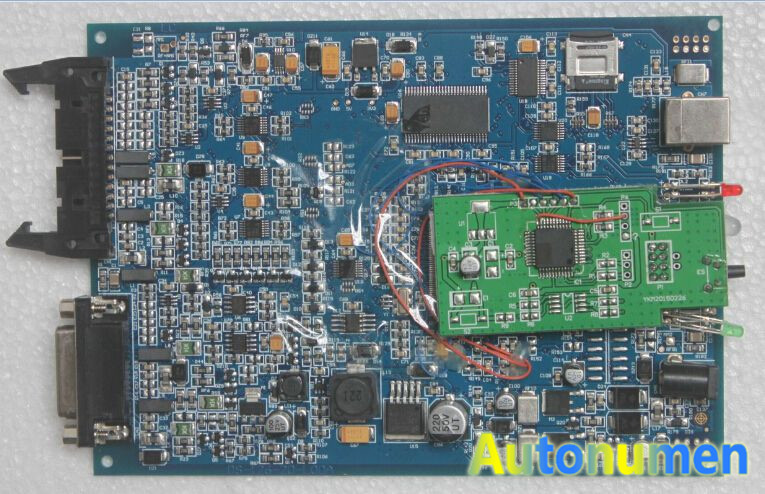

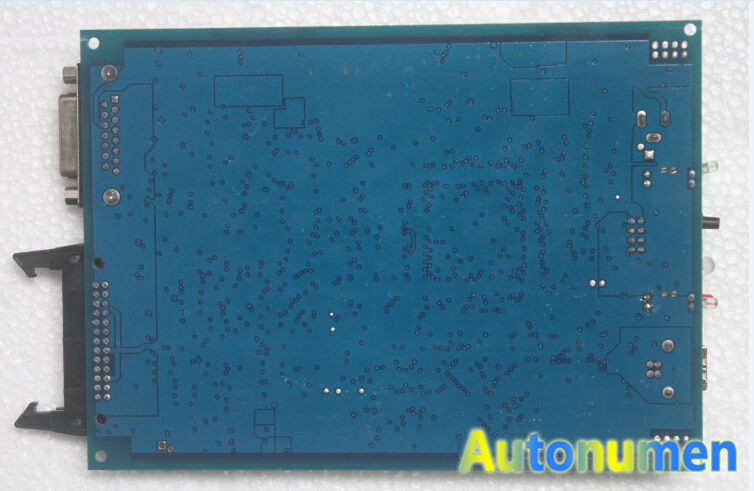

KTAG FW 7.020 PCB
Auto ECU Programmer KTAG Token Reset Tips with Token Renew Button
KTAG with token renew button. When tokens are used up, just connect it with computer and the red indicator flash, then you press the Token Reset button, wait until the indicator flash off, unplug the USB cable.
Connect KTAG with computer again, now you get 30 tokens.
How to install KTAG FW 7.020 Ksuite V2.23 on WIN XP step by step?
Before install, please disconnect the internet connection.
Unzip KTAG Ksuite 2.23 software then run Ksuite 2.23 setup.exe.

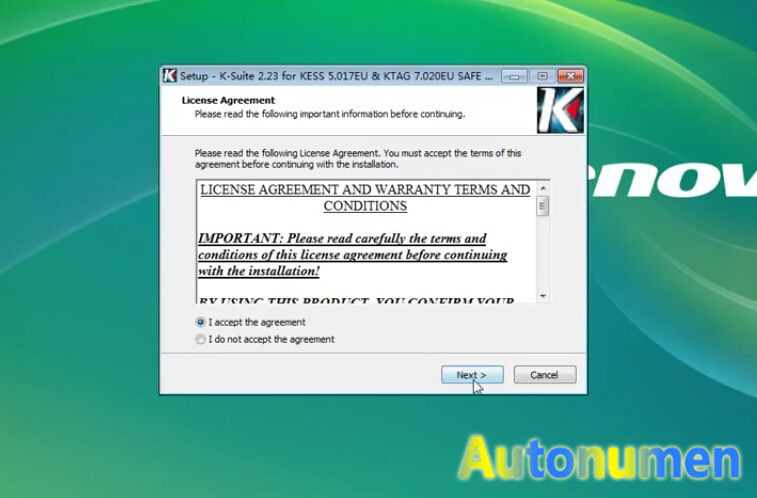

You will see a “License Agreement”.

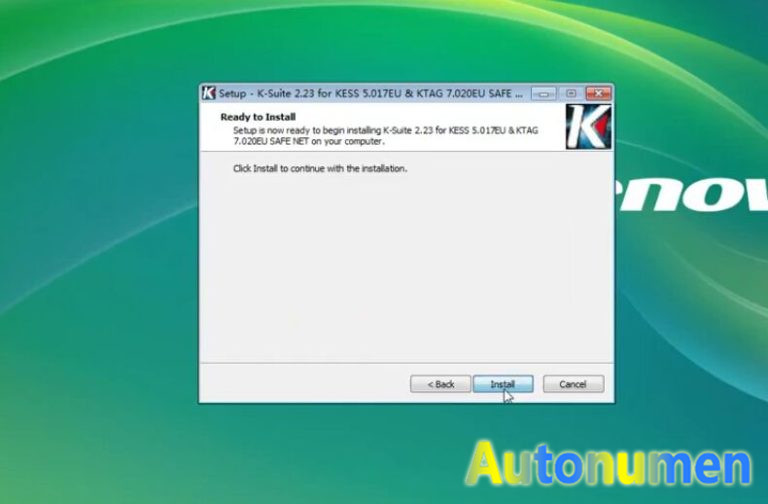

Choose “I accept” and click “Next”, click “install”.

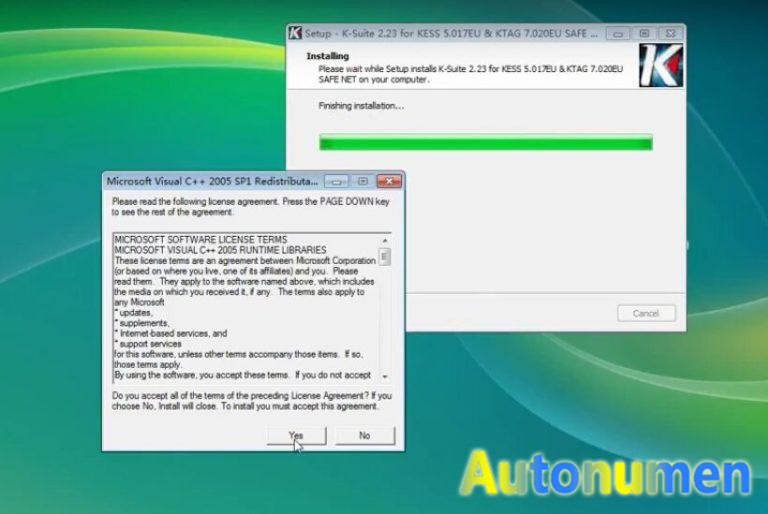

During Ksuite 2.23 installing process, you will see “Microsoft Visual C++ 2005” agreement.
Click “Yes” to accept all items and go on.

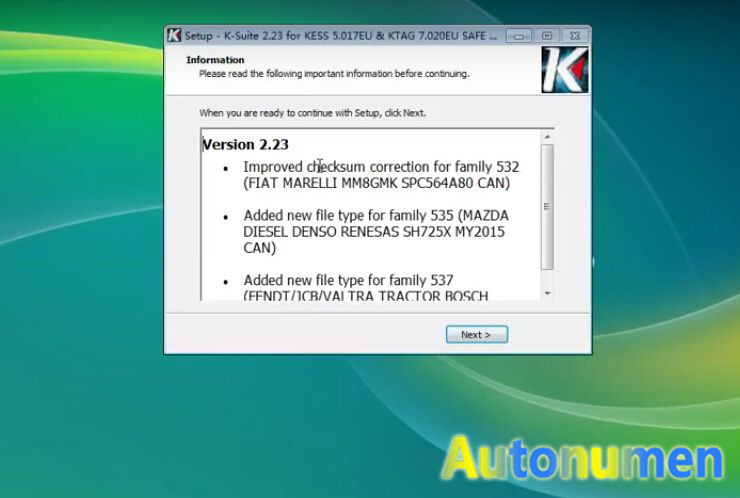

After that, you can see KTAG Ksuite 2.23 software information:
Improved checksum error for family 532 (FIAT MARELLI MM8GMK SPC564A80 CAN)
Added new file type for family 535 (MAZDA DIESEL DENSO RENESAS SH725X MY2015 CAN)
Added new file type for family 537 (FENDT/ JCB/ VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN)

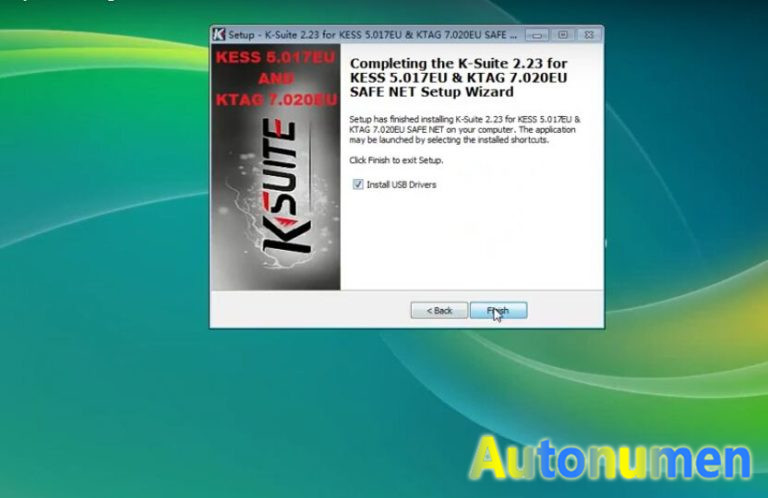

Click “Next” then “Finish”. (Remember to check the box “Install USB drivers”)

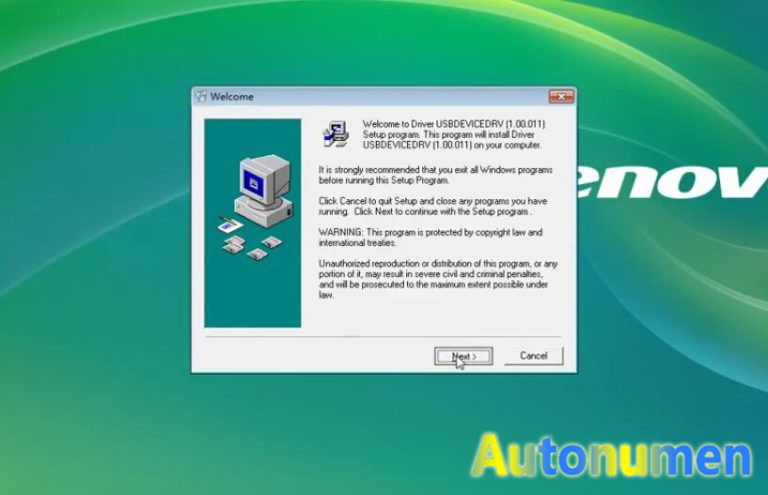

Next you are going to install KTAG Ksuite 2.23 USB Driver.
Select language “U.S English”, click “OK” to install.

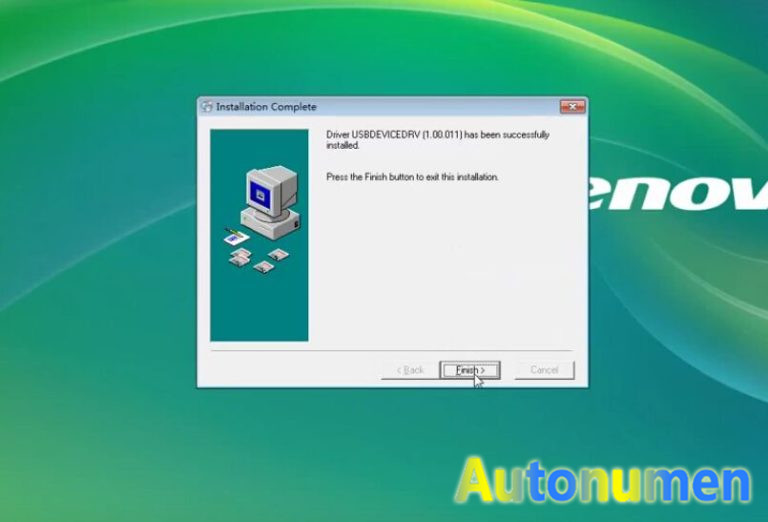

Click “Next” until you can click “Finish”.
Ksuite 2.23 USB Driver installation OK.
Now you successfully install Ksuite V2.23 software!
Click the K-suite 2.23 shortcut on desktop start to use KTAG Firmware 7.020!
