Lonsdor KH100E key mate Description:
KH100e is a versatile handheld smart device, launched by Shenzhen Lonsdor Technology Co., which includes special features and functionality, such as identify & copy chip, access control key, simulate chip, generate chip, generate remote (key), generate a smart key(card), detect remote frequency, detect infrared signal, search
induction area, detect IMMO, unlock Toyota smart key and etc.
KH100E Key-mate Features:
1. Modern appearance design, in line with the operating habits of the public.
2. Device system comes with operation instructions, easier for you to use.
3. It covers almost all the functions of the similar products in the market.
4. Built-in super sensor to collect data (over-range data collection).
5. Exclusive support for 8A (H chip) generation.
6. Built-in WIFI module, can connect to network at any time.
Lonsdor KH100E Functions:
When completing the registration activation (KH100E registration guide, please refer to page 4 in the User manual), it enters below menu interface:
1. Identify Copy
Enter this menu, follow system prompts to operate (as shown).
2. Access Control Key
Enter this menu, follow system prompts to operate (as shown).
3. Simulate Chip
Put KH100e’s antenna at the ignition switch(as shown), choose the corresponding chip type to simulate. This device supports below chip types:
①4D ②46 ③48
4. Generate Chip
Put below types of chip into the induction slot(as shown), choose the corresponding chip to operate according to the prompts. This device supports below chip types:
①4D ②46 ③48 ④T5 ⑤7935 ⑥8A ⑦4C ⑧Other
Note: some chip data will be covered and locked.
5. Generate Remote

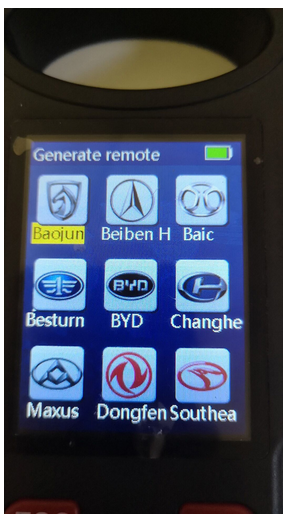

Enter [Generate key]->[Generate remote], choose the corresponding vehicle type to generate remote control(as shown) according to different regions.
KH 110E Generate Remote car model list:
6. Generate Smart key(card)
Enter [Generate key]->[Generate smart key] menu,choose the corresponding vehicle
type to generate smart key/card(as shown) according to different regions
7. Identify Coil
1) Search smart induction area
Connect remote key with remote connector, Put KH100e’s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
2) Detect IMMO
Connect remote key with remote connector, Put KH100e’s antenna close to key identification coil, and use key to turn ignition ON. When KH100e buzzer beeps, it means signal is detected.
8. Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency
9. Special function
Include: detect infrared signal, unlock Toyota smart key, More functions, to be continued…
1) Detect infrared signal
Put remote control at the infrared signal detection area, press the remote’s button once.
When the light on KH100E’s screen is on, it indicates there is infrared signal, otherwise there is no signal (see below pic).
2) Unlock Toyota smart key
Put in smart key, click OK to operate.
Lonsdor KH100E key mate Update:
Enter settings menu, and connect the device to network, then choose [check for updates], one-click online upgrade.

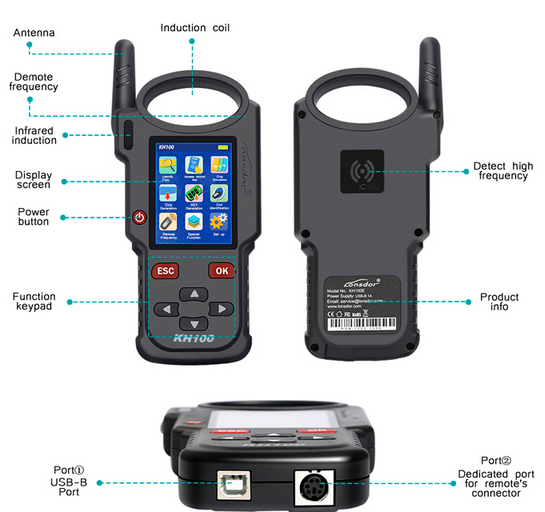

Lonsdor KH100E parameter:
Device dimension: 193MM * 88MM * 24MM
Screen size: 2.8 inch
Screen resolution: 320X240
Battery: 3.7V 2000MAH
Power: 5V 500MA
Work temperature: -5℃~60℃
USB: USB-B/charge-data transfer
Connector port: PS2-7PIN OD3.5 7PIN, 1.27 spacing, the 2nd PIN: NC
KH100E Package includes:
1pc x Lonsdor KH100E Hand-Held Remote/Smart Key Programmer
