How to diagnose vehicle fault code by BMW ICOM and ISTA-D software

Category : Uncategorized

Today illustrate how to diagnose vehicle fault code by BMW diagnostic tool BMW ICOM and ISTA-D software:Check all car module status,and delete fault code memories.

Tool used:Autonumen.com BMW ICOM A2 WIFI or BMW ICOM NEXT

Software used:BMW ICOM HDD ISTA-D 4.06.31

Step1:Connect vehicle with ICOM,open ISTA-D 4.06.31.

First you need test your car.Go”Vehicle information”→”Control unit tree”→”Star vehicle test”.

Click “Yes”.
20.1

Step2:Finished the vehicle test,fault module will show yellow or red.

Yellow means wrong memory,red means no response,whole green means no any problem.

Click “Display fault memory’’,check fault code.

20.2
Step3:Go “Vehicle management”→ “Troubleshooting”→”Fault memory”.

You can check the fault illustration with fault code,and double click every item and correspondingly show the detailed description.

20.3

(“Calculate test plan” button guides to check fault.)

Just click ”Clear error memory” and “Yes”.If it is not serious problem,all module will turn green.

20.4

20.5

20.6


  • 0

MB SD Connect C4 change Mercedes time and date in cluster

Category : Uncategorized

Here is the instruction on how to change MB Star Diagnostic Tools MB time/date with 2017.12 SDConnect C4 DAS/Xentry software.
15.1
Equipment:

I have bought Star Diagnostic multiplexer with DAS/Xentry software on  www.autonumen.com.

I think it’s cheaper than other places.

Follow the steps:
1. Install and activate the software. Software is pre-installed and activated if you get the MB SD Connect C4 multiplexer and Dell D630 laptopbundle package.
2. Connect MB SD C4 system with vehicle via OBD port
3. Run DAS software
4. Come to the main Control units group menu->F3
5. Select Information and communication option->F3
6. Select IC Instrument Cluster->F3
7. Select Diagnosis to plant specifications->F3

15.2

8.Select Control unit adaptations->F3

15.3

9.Select Control unit adaptations (Variant coding)->F3

15.4

10.Select Variantkodierung ->F3

15.5

11.Select Datumsanzeige Grundbildebene and turn date on “ein”

15.6

12.Select Menu 24 option and activate key dependency to “aktivieren” to active the status.

15.7

13.Reboot the cluster. The whole procedure is complete.

Just follow the steps above,you will have a wonderful experience with SD Connect Compact 4.


  • 0

How to DIY MB Star Diagnosis

Category : Uncategorized

This is a post I read on the forum and find that it get lots of good comments, so I think there may be more people need and post on the blog for sharing.

I would help out a few Autonumen.com MB brothers with a couple star diagnostic tutorials…

Note: this is DAS/XENTRY Software with mb star diagnosis.
Free download: http://down.mbstarsgop.com/download/xentry.zip

First, Lowering the car.
Get to the 211 Section.

You will get to the main menu

Then go to Function performed by more than one control unit.

Then Chassis

Then Level adj

Then Suspension

And here is where people have problems, they just go to actuations and then lower it, IT WILL NOT STAY LOWERED this way, you have to go to initial startup

Then Initial with manual settings

Then F2

Here you will see a screen that shows the voltages which correspond to the height of the vehicle. they must be within the given ranges in the left hand column. use the + and – buttons to lower the car (In my screenshot I am in the car with a friend in the back seat, so that is why it is at 3.27, it should not exceed 3) Then hit F2

Enter in these inclination angles and if the car is within the voltages supplied in the page before, the car will accept the new lowered setting, if not it will reject it.

Now, how to activate the unlock and lock beep (honestly, one of the best mods to do if you have an older model e55)
First Control units

Then Body

Then rear SAM

Then Control unit adaptations

Then national version of ATA function

At this screen you will see a pull down menu with a list of different regions on it. The only ones you need to worry about are USA with buzzer and Netherlands. If you choose USA, i will give you three short quick beeps when you lock the car and one short when you unlock it. Netherlands will give you three longer beeps when you lock the car and one long when you unlock it. Personal preference on which one you like. Then hit F3

Then F3(YES)

Hope this helps out some people. I really did not find a good DIY for Star Diagnostics, so I thought I would help out!

Published on mb star diagnosis


  • 0

Where to find good wholesale Launch X431 Tool

Category : Uncategorized

Launch X431 Tool is cheap , but if you can’t find the good supplier you can buy the wholesale launch x431 tool , so here I want to share some useful experience about how to find a good launch wholesale supplier and give the useful knowledge details about the x431 tool description.

First , see here, this is the short description about the launch x431 tool .

Autonumen.com x431 master major functions involve the simulation and test for all sensors on vehicles. Under simulation conditions, it can receive the control signal from X-431 main unit and carry out all the commands. Under test conditions, it can transfer the data back to the main unit in accordance with the control signal given by the main unit.

Under test condition, the latest data can be recorded in the form of curve. This puts the change of the test data right in front of your eyes and is highly significant for process analysis. In particular, it is good for the capture of remittent changes in the process.
Under voltage simulation condition, the user will be able to make any change to the voltage under simulation by dragging the icon indicating the voltage. This enables the simulation of any imaginable voltage change and gives more flexible and more accurate sensor simulation.

Somebody has write this article about the technology of the launch x431 tool .

Second , we have know the details technology about the launch x431 tool , but where to find the good launch x431 tool supplier and where to buy the wholesale tool?

Here I suggest you go to find the chinese suppliers , Because , if you buy the wholesale from the chinese supplier you can save lots of money, why I say so , for example, this tools is just, if you have brought six tools from the one supplier it will be so , the most important way is to find the good chinese supplier , I think VtoolShop is good choose , here you can see the ture tool images from it.

You can see from this picture , it’s the launch x431 tool. If you buy the wholesale tools. It may save you a lot of money.

Third , you must know that the wholesale supplier is good in China, you can make a discount from them .There three tips I suggest you to buy a wholesale x431 tool is good for you .

Published on launch x431


  • 0

How to use Green SKE-LT Smart Key Emulator for Lonsdor K518ISE Key Programmer

30.1

SKE-LT Smart Key Emulator work for Lonsdor K518SE Key Programmer,SKE-LT Smart Key Emulator with Lonsdor K518SE to Bind emulator key, backup on board computer immodata & to add a smart key etc.Lonsdor SKE-LT Smart Key Emulator for Lonsdor K518ISE Key Programmer 4 in 1 Set. Below obd2tool.com share how to use the Toyota Lexus 98 chip (SKE Green) & 94/D4 chip (SKE Black) smart key emulator work without connecting from the server.

How to use Green SKE-LT Smart Key Emulator for Lonsdor K518ISE Key Programmer?

Chip model: 98 (SKE Green)

Remote type: Specific smart card

Key embryo No. Specific smart card

Pin code requirement: Not required

Remote generation: Generate automatically when smart key programming complete.

OBD position: Under steering wheel

Smart key appearance for part of Toyota series (see below picture)

30.2

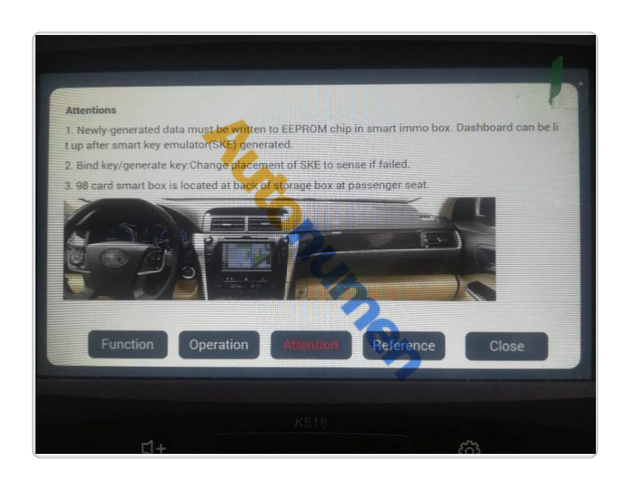

Attention:
1.Newly-generated data must be written to EEPROM chip in smart immo box. Dashboard can be lit up after smart key emulator (SKE) generated.
2.Bind key/generated key: Change placement of SKE to sense if failed.
3.98 card smart box is located at the back of storage box at the passenger seat.

30.3

Operational guide:

Operational process for all key lost

Please confirm whether smart key emulator (SKE) is bound to K518.

Backup EEPROM immo data ->Generate specific EEPROM data -> Dismantle smart immo box and

write new data to EEPROM -> Generate SKE ->Add / delete smart key

Backup EEPROM immo data

1.This function can backup EEPROM data.

2.System is receiving data, please wait patiently.

3.Please input data filename and save succeed.

30.4
Function overview

Operational process

Please confirm whether smart key emulator (SKE) is bound to K518 device beforehand.

Backup EEPROM immo data ->Generate specific EEPROM data -> Dismantle smart immo box and

write new data to EEPROM -> Generate SKE ->Add / delete smart key

1.Backup the original EEPROM immo data.

2.Use the backup data to generate new data.

3.System certify and generate new data automatically, and program SKE to become available key,which can open dashboard. Then you can program smart keys.

4.Add a smart key.

30.5

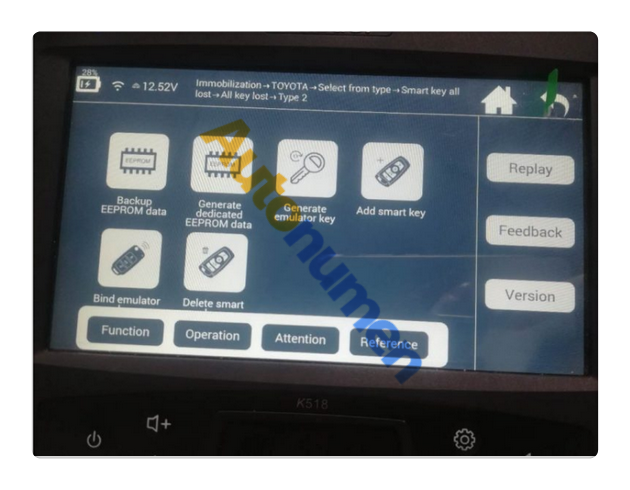

Tap Immobilization -Toyota -> Select from type -> Smart key all lost ->All key lost-> Type 2

30.6
30.7
Any need for Auto key Programmer Lonsdor K518 Key Programmer or Lonsdor SKE-LT Smart Key Emulator just contact us freely.


  • 0

Why Nexiq 125032 USB Link Truck diagnostic tool is so helpful ?

As for as I am concerned , Heavy Duty Diagnostic Nexiq 125032 USB is a helpful tool , which has excellent performance to make users feel satisfied and meet users demand . There are some reasons to show why this tool is so helpful .

On the one hand , NEXIQ 125032 USB Link and Software Diesel Truck Interface are a PC-to-vehicle interface compatible with multiple software applications , which can support diagnose engines , transmissions , ABS , instrument panels and more. It can be quickly access to vehicle data for maintenance or management reports , minimizing your investment in multiple brand-specific diagnostic . And the Nexiq USB Link is support Heavy-Duty , Light-and Medium-Duty Trucks , CONSTRUCTION EQUIPMENT like Wheel loader, Articulated Hauler and Excavator . Beside, the USB vehicle-to-PC connectivity and XTruck USB supports Windows XP , windows 7 32-bit and 64-bit and windows CE compliant. However , not all applications are included.

On the other hand , the XTruck USB with Bluetooth, and reduce reprogramming times with direct USB connection . It can be quickly attaches to vehicle’s diagnostic connector and easily portability increases flexibility . And this tool is suitable VOLVO bUS: B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX and so on .

All in all , the Nexiq USB Link 125032 on Autonumen.com has highest performance and professional technology to meet users demand so that many people more and more fall in love and choose to buy it . It’s a useful and helpful locksmith tool to help you solve many problems . It’s worth to purchase .


  • 0

MB Star C5 Functions

The MB STAR C5 notion and brand combination for hardware and software program components will be the next step towards an integrated After-Sales Technique atmosphere with future-oriented diagnostic solutions.

Below the “XENTRY Solutions“ umbrella brand, users will now have access to XENTRY Diagnostics, XENTRY Strategies, XENTRY Flash and XENTRY Help & Feedback, as well as to the hardware diagnostic solutions XENTRY Kit and new Professional Diagnostic Tools such as XENTRY Control.

Benz Diagnostic Tool MB Star C5 from autonumen.com Functions:
1.can be modified as needed for each module
2.support for the latest models: W221, W212, W203, 211,204
3.Assistance HHT (Handheld Tester) MB Mercedes-Benz cars
4.professional digital full, partial, single diagnostic
5.Read and Clear DTC error code
6.Real (Real) sensor readings
7.Partial / single modules and complete diagnostic
8.Service time is reset
9.SRS, ABS, ASR, MPL, GM, speed control, engine diagnostic
10.keyless entry method
11.unlimited runtime without limitation, all vehicle classes open!
12.Disable automatic vehicle seat belt warning “subversive”
13.variants encoding in real time to any special features of the vehicle, activating existing SCN coding
14.read and write to the new SCN coding or functional modules Module Installation and Troubleshooting


  • 0

Different between MB SD Connect Compact 5 and MB SD C4 Star Diagnostic Tool

MB SD C4 Star Diagnostic Tool is the professional diagnostic tool for benz cars and trucks. This is the popular tool which enjoy the market of Benz diagnosic Market.

Recently, one of the new tool which named MB SD Connect Compact 5 launch to the market. It is the update version of MB SD C4.

What is the different between these two tools?

The performs of MB SD Connect Compact 5 same function as MB SD Connect C4 with newer design. The new MB SD Connect C5 with same case as original Xentry Connect 5 multiplexer. Other features are exactly the same as MB SD C4. The new MB SD Connect C5 is cheaper in price than mb sd connect c4.

Comparing the features of MB SD CONNECT Compact C4 , what is the different?

The host communication connection end USES from design, to avoid inadvertently fall in the normal use of the communication port to connect and communication failure, etc.
DC 12 v power supply design/host upgrades to avoid the battery installation/battery voltage instability/host can’t enter the shutdown state, etc, caused by the motherboard and rapid  aging of the battery.
The host CPU radiator surface and perfectly fit alloy shell, good heat dissipation effect. Equipment running smoothly, don’t crash.
The host USES the tamper clasp, should to avoid fragile warranty sticker damage caused by the warranty disputes.
Host wifi protected the upgrade for PC plastic shell, solid quality does not affect the wi-fi signal.
OBD main telecommunication lines connected to the host end upgraded to VGA15 industrial-grade connector.
Network upgrade for gigabit connections/pure copper wire core/double layer aluminum foil/woven mesh/silica insulation material. Gigabit communication Against interference/pulling  open circuit / / fracture in low temperature.

MB SD C5 Supported System: ENGINE, automatic transmission, air conditioning system, SRS, ABS and ASR, MPL, GM, Benz original security DASX system, KEYZESS GO system and OBD II system, etc.

Lastest version software for MB SD Connect C5 is 2016.05.

Vehicle coverage : Mercedes Benz Car, Bus, Truck,Sprint, Smart from 2000 up to now;Especial for 2015 new models like W222, W221, W212, W203, 211,204,GL166, B 246, CLS 218, SLK172.

From Autonumen.com MB SD Connect C5 more special functions,such as engineer mode, remove limitations,etc.It can also support offline SCN coding functions.

For more detail information about MB SD Connect C5, please link to : http://www.autonumen.com/category-163-b0-MB+Star+Compact+C4.html


  • 0

What Would you Find out about MS908CV ?

The Autel MaxiSYS commercial car diagnostics scan device, No. MS908CV, performs increased technique diagnostics on a lot more than sixty business gentle obligation, medium responsibility and significant duty motor vehicle brand names. The  Autel MaxiSYS MS908CV is built over the MaxiSYS Android-based platform. The entire tool package will come together with the most recent compact dimension J2534 MaxiFlash Elite to carry out pass-thru programming perform and finish an array of of tool-guided maintenance products and services, then diagnose company certain techniques including Allison transmissions, Bendix Stomach muscles brake techniques, Detroit Diesel Engines and Eaton and Wabash Stomach muscles trailer brakes.

To be a new member of Autel?ˉs MaxiSys loved ones, the  Auto Scanner Tools MaxiSys CV is built to the impressive MaxiSys 908 system and presents a comprehensive disgnostic alternative for pretty much all professional cars in addition as devices produced in North America, Europe and Asia. Featuring sophisticated characteristics and extraordinary ease-of-use, MaxiSys CV could be the best answer for independent fix stores, owner-operators and a variety of sized fleets seeking an individual scan software for all their skilled large responsibility requirements.

Created over the MaxiSYS Android-based platform, the  MaxiSYS MS908 CV performs increased procedure diagnostics on more than sixty industrial car manufacturers. Browse and very clear codes, see and graph reside knowledge, perform tool-guided upkeep products and services, total an variety of special features and diagnose manufacturer-specific methods together with Allison transmissions, Bendix Abdominal muscles Brake methods, Detroit Diesel Engines and Eaton and Wabash Stomach muscles trailer brakes. 1-Year Guarantee Provided.

The complete MaxiSys CV instrument package includes a compact sized MaxiFlash Elite which performs J2534 and J2534-2 pass-thru programming and delivers bluetooth VCI communication in between the vehicle and MaxiSys CV tablet.

See more click:http://www.autonumen.com/


  • 0

Autel MaxiSys pro MS908P Highlight

Autel MaxiSys Pro MS908P is an evolutionary smart solution for specialized automotive diagnosis and ECU programming. Designed with the DNA of Autel’s diagnostics family, the MaxiSys is built to offer many of the prestigious qualities of the Automotive Scanners MaxiDAS DS708 with extreme ease of use and powerful diagnostic performance.

From Autonumen.com Autel MaxiSys pro MS908P Highlight:
1.Autel Maxisys Pro can do online programming ,at the same time it’s compatiable for diagnosis and online programming for part of the original software.
2. MaxiSys Pro HAVE 6 Kinds of languages for you choose:English,German, French, Spanish,Portuguese
3. Extensive vehicle coverage for more than 40 US, Asian and European vehicle makes
4.MaxiSYS Pro includes the J-2534 reprogramming box and special MaxiSYS Pro software
5.The VCI connects wirelessly to the main unit with ultra-range Bluetooth / WIFI
6.Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles

Autel MaxiSys Pro Scan Tool Software advantage:
1.Open source Android Operating System for fast boot-up and multitasking
2.Easy and intuitive navigation makes finding what you need simple and fast
3.Displays live data in text, graph and analog for easy data review and analysis
4.Configure live data display options, set alarms, record, and playback data frames with one touch
5.Records and playbacks live data to pinpoint troubles of sensors and components
6.Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
7.Remote technical support for convenient demonstration, training and increased customer satisfaction
8.Intelligent memory of vehicles for easy and quick diagnosis of tested vehicles
9.Prints out recorded data anytime and anywhere with Wi-Fi technology
